Rollassage™
Patented
Our knowledge is powered by 17 patents and over 32 years of experience designing and producing the best spa support products in the hot tub industry.

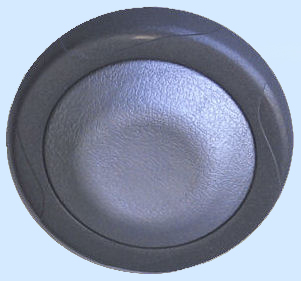

Rollassage Spa Massager   Rollassage Spa Massager



Prices include Free Freight*



Rollassage™ installation instructions as recommended by Acura Spa Systems, Inc.

  1. Drill hole in spa shell using a 3.75" hole saw (make sure shell hole is prefectly round).
  2. Unscrew turbine housing (p/n: RL1-32x) from main housing (p/n: RL1-11x) by rotating counter clockwise.
  3. Unscrew main housing nut (p/n: RL1-xxx) from main housing (p/n: RL1-11x) by rotating counter clockwise.
  4. Make sure housing seal (p/n: RL1-12x) is properly installed on main housing and spa surface is flat around housing seal area.
  5. Insert Rollassage™ assembly through the 3.75" shell hole.
  6. Install plastic washer (p/n: RL1-xxx) from the back of the spa shell to a flat surface.
  7. Secure Rollassage™ assembly using main housing nut (p/n: RL1-11x). Use silicone or loctite on the main housing threads before securing main housing nut.
  8. Make sure that O-ring is installed on main housing (add marine lubricant on O-ring if necessary).
  9. Secure turbine housing to main housing by rotating clockwise. Use silicone or a little loctite on the main housing thread before securing turbine housing. HAND TIGHTEN ONLY!
  10. Connect and glue PVC pipe from the pump discharge to turbine housing (part number RL1-32x).
  11. Connect and glue PVC pipe from turbine housing to an open drain.
  12. Water flow must be in the direction of arrow marked on turbine housing.
  13. Recommended operating pressure range 12 to 18 psi.
  14. On/Off valve must be installed in turbine housing water flow path and within spa bather reach in order to operate the Rollassage™ at different speeds and also act as a shut off valve.

We have supplied thousands of Rollassage for hot tubs made by Dolphin Spas.
We have supplied thousands of Rollassage for hot tubs made by Hydromax.
We have supplied thousands of Rollassage for hot tubs made by Islander Spas.
We have supplied thousands of Rollassage for hot tubs made by Life Spas.
We have supplied thousands of Rollassage for hot tubs made by Regal Spas.
We have supplied thousands of Rollassage for hot tubs made by VitaSpas.
spa massager, spa massagers,






WE'VE TURNED THE SPA INTO A RELAXING THERAPEUTIC EXPERIENCE


A new dimension in hydrotherapy: Rollassage™ adds true massage to your spa's buoyancy and warm water. Water jets deliver water pressure, Rollassage™ provides direct contact: 3 rotating balls act like rotating knuckles to gently but firmly rub down those tired and overworked muscles; Rollassage™ helps loosen up the knots and relieve tension. Rollassage™ may be installed to provide invigorating work out for the tight lower back, the stiff shoulder blades, the stiff base of the neck with no water splashing over the spa and, most of all, it massages those overworked and aching feet combining the effect of having a massage in hot water and the science of "reflexology" . Rollassage™ has been designed with the spa user in mind: the massaging mechanism is removable from within the spa for easy service if needed.







Caesar Spa




WE'VE TURNED THE SPA INTO A RELAXING THERAPEUTIC EXPERIENCE!


There's nothing on the market like the Aquassage™. No other massager provides a soothing, comfortable massage to the neck and upper shoulder muscles like the Aquassage™. The Aquassage™ is the world's only non-electric massager to provide a shiatsu style massage to spa and hot tub users. That's because our turbine-driven Aquassage™ provides a slow, undulating massage on the neck and shoulders, without water splashing all over. Dr. Paul E. Wakim, D.O., an orthopedic surgeon in California, has evaluated the Aquassage™, and determined it is perfectly safe for use by adults in spas and hot tubs. WE'VE MADE IT SAFE, ENJOYABLE AND EASY TO INSTALL! It takes less than 10 minutes to install an Aquassage™, and it comes with complete instructions.

Many spa manufacturers and spa distributors in the last decade have incorporated the Aquassage™ in their spas. Spa manufacturers such as: Bullfrog Spas, Country Leisure Spas, D. M. Industries, Diamonte Spas/Sensation Spas, Dimension One Spas, Dolphin Spas, Hydromax, Islander Spas, Life Spas, Lifespring Spas, Orozco International Spas, Pacific Fiberglass, Phoenix Spas, Platinum Spas, Regal Spas, Sequoia Spas, ThermoSpas, US Tooling Spas, VitaSpas, and many others.

We have supplied thousands of Aquassage for hot tubs made by Bullfrog Spas.
We have supplied thousands of Aquassage for hot tubs made by Country Leisure Spas.
We have supplied thousands of Aquassage for hot tubs made by D. M. Industries.
We have supplied thousands of Aquassage for hot tubs made by Diamonte Spas/Sensation Spas.
We have supplied thousands of Aquassage for hot tubs made by Dimension One Spas.
We have supplied thousands of Aquassage for hot tubs made by Dolphin Spas.
We have supplied thousands of Aquassage for hot tubs made by Hydromax.
We have supplied thousands of Aquassage for hot tubs made by Islander Spas.
We have supplied thousands of Aquassage for hot tubs made by Life Spas.
We have supplied thousands of Aquassage for hot tubs made by Lifespring Spas.
We have supplied thousands of Aquassage for hot tubs made by Orozco International Spas.
We have supplied thousands of Aquassage for hot tubs made by Pacific Fiberglass.
We have supplied thousands of Aquassage for hot tubs made by Phoenix Spas.
We have supplied thousands of Aquassage for hot tubs made by Platinum Spas.
We have supplied thousands of Aquassage for hot tubs made by Regal Spas.
We have supplied thousands of Aquassage for hot tubs made by Sequoia Spas.
We have supplied thousands of Aquassage for hot tubs made by ThermoSpas.
We have supplied thousands of Aquassage for hot tubs made by US Tooling Spas.
We have supplied thousands of Aquassage for hot tubs made by VitaSpas.
spa massager, spa massagers











*Free Freight only for Fedex SmartPost. Other forms of shipping incur additional shipping costs.

**Beating competitor's price: We will meet or beat any competitor's written quotation for hardware of the same capability, such as: plumbing size, voltage, motor horsepower, motor 1 or 2-speed, heater length, safety test report, etc.

A $9.95 Handling charge is applied to all orders.

All products sold per our "Terms and Conditions" found in the "Support" section of our menu.

When your order is produced, the pump motor used (A.O. Smith, Regal Beloit, Marathon Electric, etc.) will be whatever is in stock in our factory at the time.
